Table Widget

Visualization

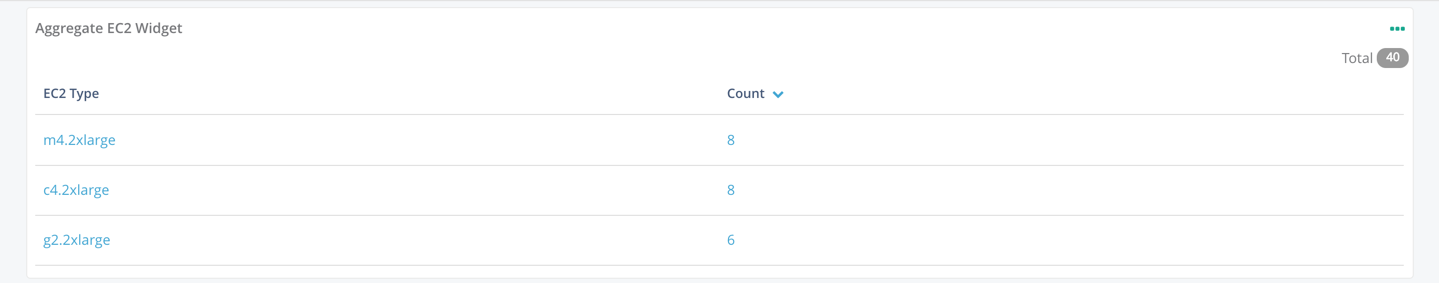

The Table widget has only one visualization: the table view.

Table Widget

Scope

Set the scope of your Table widget by inserting an element name or by selecting an element type. You can also define your scope using attributes, tags, and exclusions.

set-scope

Display

  1. Choose a metric to display (as a new column) for each element in scope using the dropdown.
  2. Give the metric you are tracking a Display Name.
  3. Select your preferred statistic (avg, min, max, cnt or sum). You can also set a Unit.
  4. Repeat this for all desired metrics by selecting the green + icon.

add-metrics

Attributes & Tags

  1. Choose an Attribute or Tag to display (as a new column) for each element in scope using the dropdown.
  2. Give the attribute you are tracking a Display Name.
  3. Select your preferred Statistic (avg, min, max, cnt or sum). You can also set a Unit.

set-attributes

Widget Name

Provide a widget name and then Save.

set-widget-name
