Custom MBeans

The Java agent can collect metrics from custom mbeans. We have provided a sample spring boot application that creates 2 custom mbeans with test attributes here.

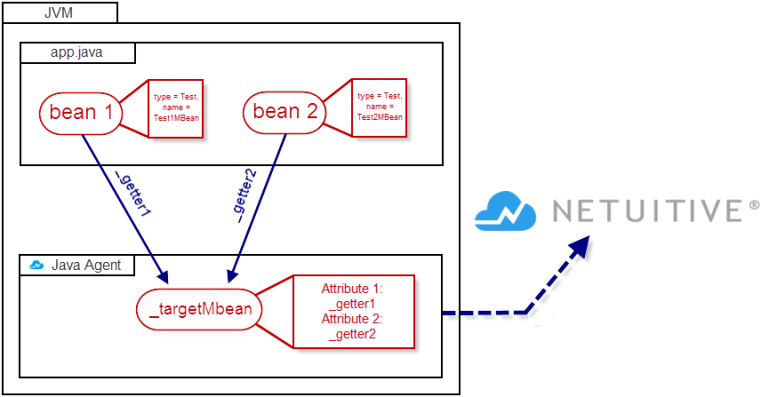

Multiple Custom MBean Diagram

multi diagram

For a Single Custom MBean

  1. Navigate to the zorka.properties file in your Java agent directory.
  2. Near the bottom of the file, set the attribute netuitive.api.custom.stats.mbean to the custom mbean you defined in your application
#custom mbean to collect metrics from
netuitive.api.custom.stats.mbean = com.netuitive.mbean:type=Test,name=CustomTestMBean
  1. Save the file.

For Multiple MBeans

We’ve provided a sample .bsh script that creates getter objects for each of the mbeans in the sample multiple mbean spring boot application file.

  1. Create a .bsh script that contains getter objects for each of your custom mbean values. In the same script, create a rollup mbean and add the getter objects you created in step 1 as attributes of the rollup mbean.
  2. Navigate to the zorka.properties file in your Java agent directory.
  3. Add the script you created in step 1 to the scripts setting.
#Default collection of jvm metrics
scripts = jvm.bsh, custom-mbean.bsh
  1. Near the bottom of the file, set the attribute netuitive.api.custom.stats.mbean to the new rollup mbean you created in step 2. #custom mbean to collect metrics from netuitive.api.custom.stats.mbean = com.netuitive.mbean:type=Test,name=RollupTestMBean
  2. Save the file.

Leave the netuitive.api.custom.stats.mbean.attr.includeattribute blank to include all metrics.
